Phone :86+13832383753             Email:sales@hbjymetal.com

Of GOST 9466-75 9467-75 10051-75 Electrode of 1,6 - 12 Mm TIG Welding Welding Electrodes 6013 6011 7018 AWS E6013 AWS Standards

Welding Electrodes 6013 6011 7018 AWS E6013 AWS Standards
Of GOST 9466-75 9467-75 10051-75 Electrode of 1,6 - 12 Mm TIG Welding Welding Electrodes 6013 6011 7018 AWS E6013 AWS Standards
price

$0.95 - $0.98 / kilogram

AWS E6013
1 kilogram
Tianjin
Quantity
  • Customized support:OEM, ODM, OBM
  • Place of Origin:Hebei, China
  • Brand Name:Jinyuan
  • Model Number:AWS E6013
  • Material:Type titanium oxide steel welding rod
  • Operating Current:AC/DC Welding Electrode E6013
  • Welding Current:International Standard
  • Operating Temperature:Standard Temperature
  • Application:TIG Welding
  • Standard:AWS Standards
  • Product Name:Welding Electrode AWS E6013
  • PACKING:2.5kg/box
  • Item:Welding Electrodes 6013 6011 7018
Products Description

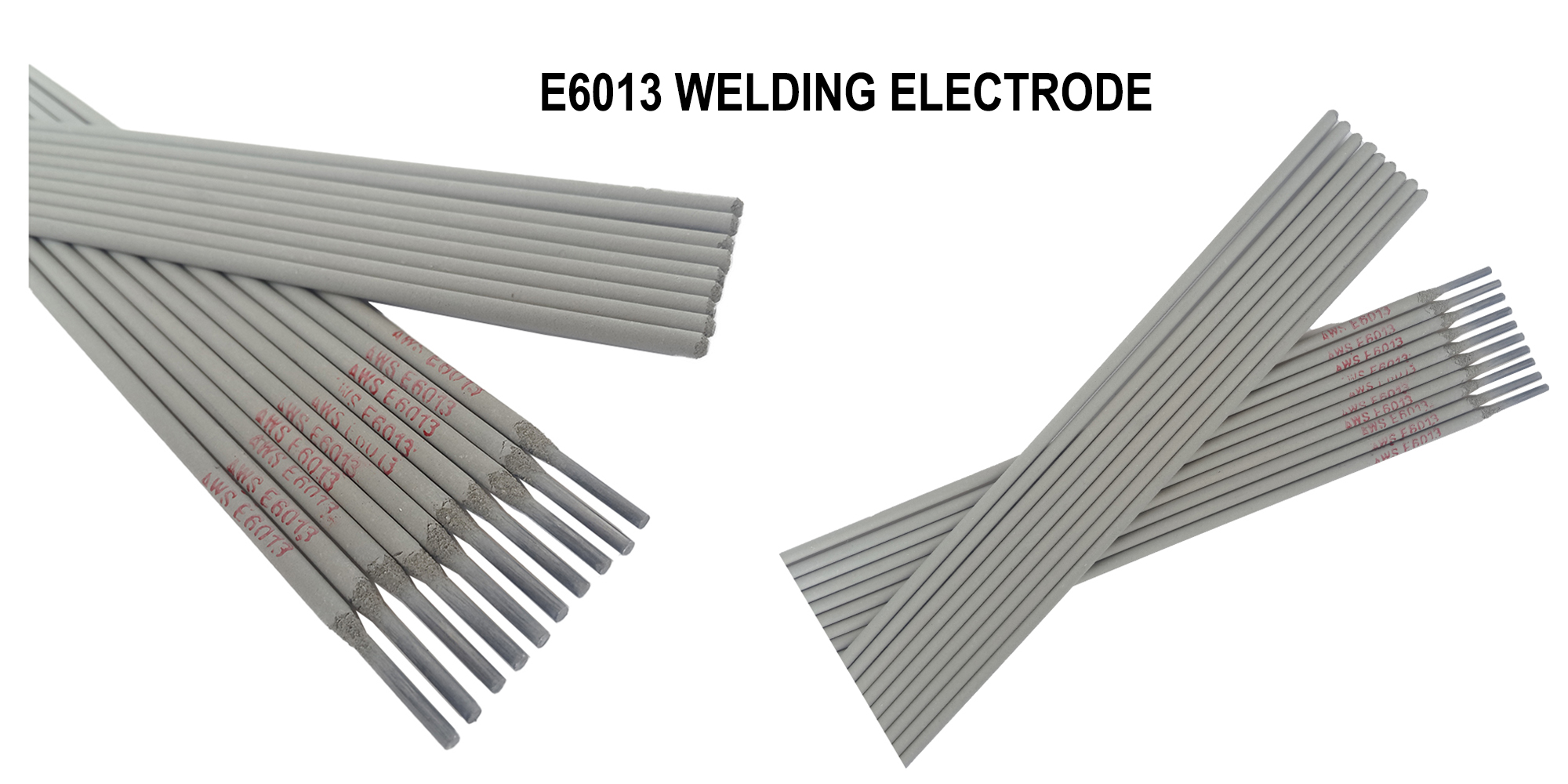

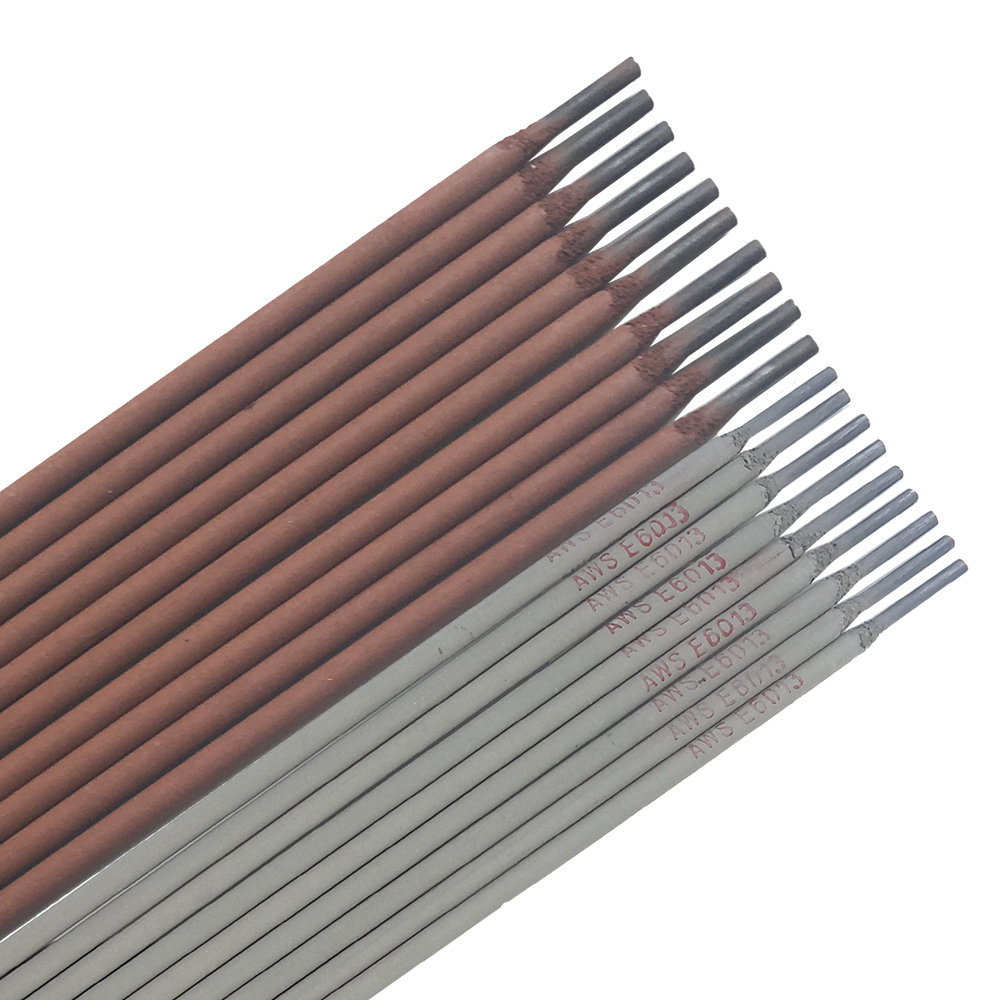

WELDING ELECTRODE DISPLAY


E6013 Welding Electrode
Application:
Thin Plates, Smooth Surface Beads,
Low Carbon Steel Structure
Welding Position:
All Position.
PA, PB, PC， PD， PE， PF
X-ray Inspection
Ⅱ Level
Color
Grey, Blue, Red, White Yellow
Advantage:
1.Stable Arc
2. Little Spatter
3. Easily Remove Slag
4.Easy Reignition
5. Little Smoke
Little Spatter
Easy Remove Slag
Please check more details below.

E6013 Welding Electrode Chemical Composition of Deposited Metal (%)
Composition
C
Mn
Si
S
P
Guarantee Value
≤0.12
0.3-0.6
≤0.35
≤0.035
≤0.040
E6013 Welding Electrode Mechanical Properties of Deposited Metal
Test Item
Rm (Mpa)
ReL(Mpa)
A(%)
KV2(J)
Guarantee Value
≥420
≥330
≥17
≥47
E6013 Welding Electrode Reference Current( AC, DC)
Diameter (mm)
2.0
2.5
3.2
4.0
5.0
5.8
Welding Current (A)
40-70
50-90
90-130
130-210
180-240
220-280

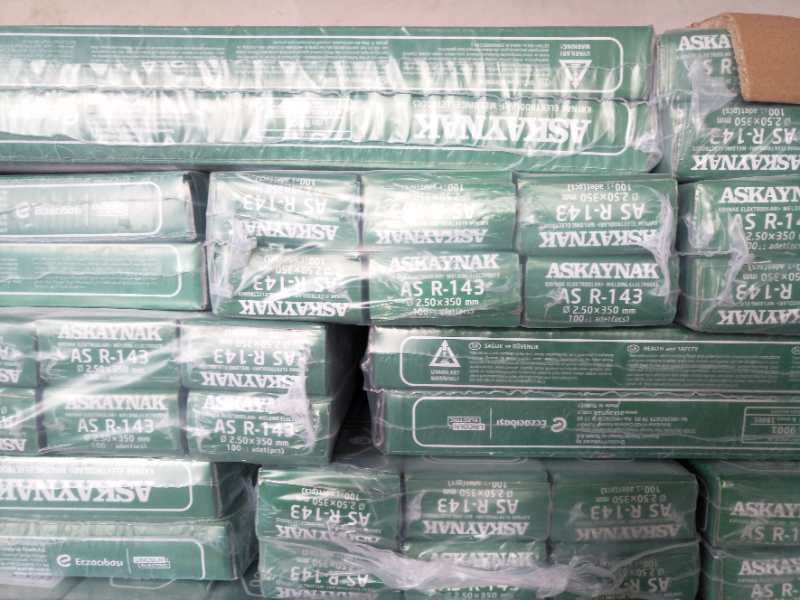

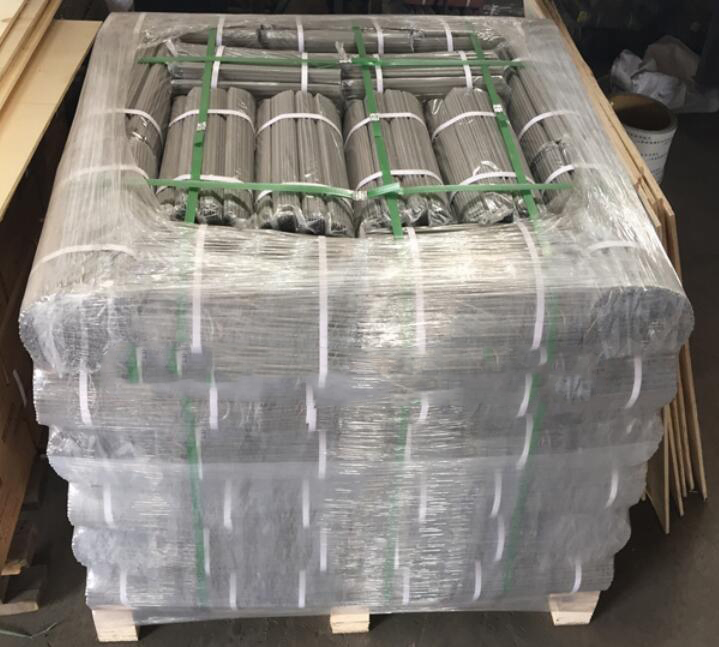

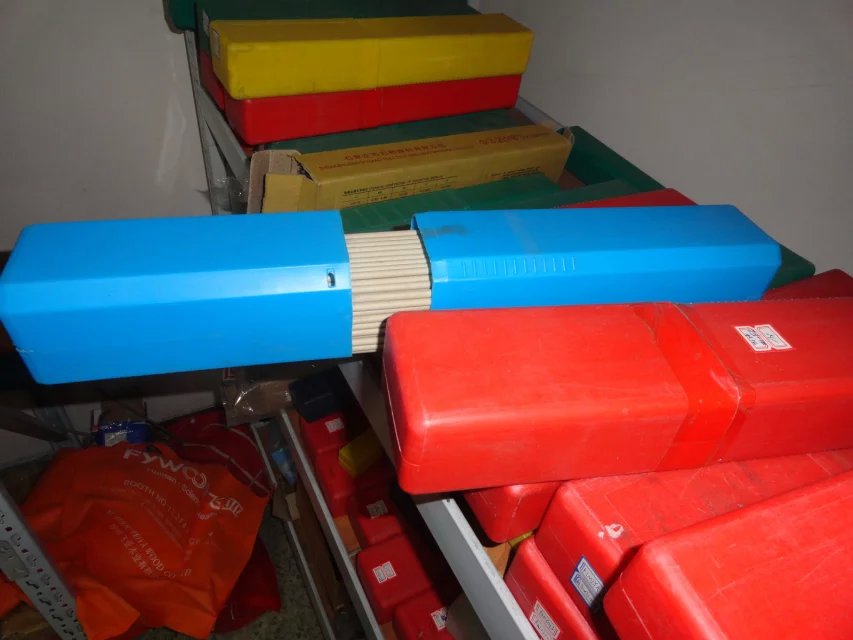

Product Package

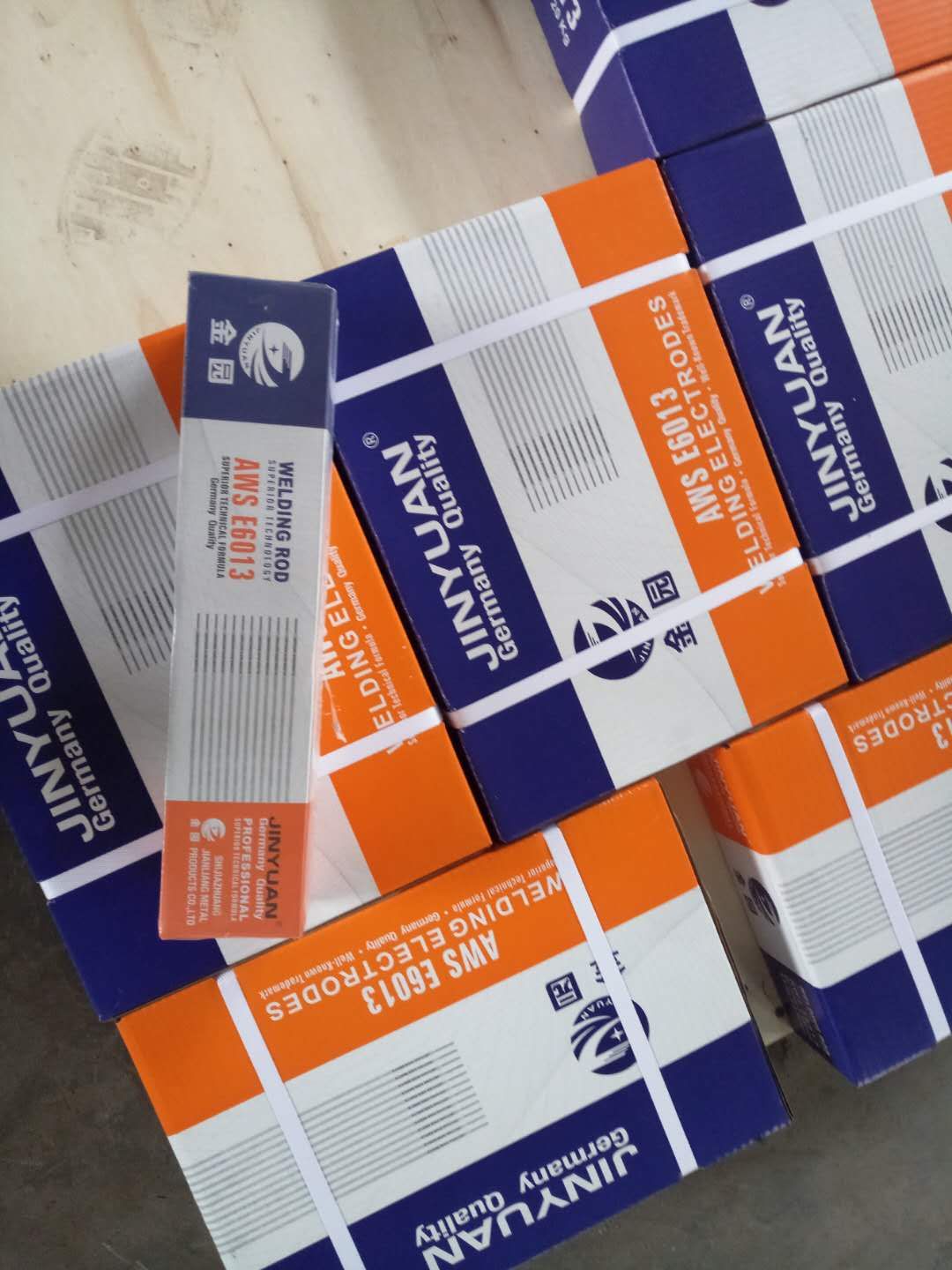

Small Box Packing, then Put into Big Carton

Six Small Box by Shrink Plastic Film

Plastic Box Packing

Checking Tensile Strength and Elongation of the Wire

Quality Checking

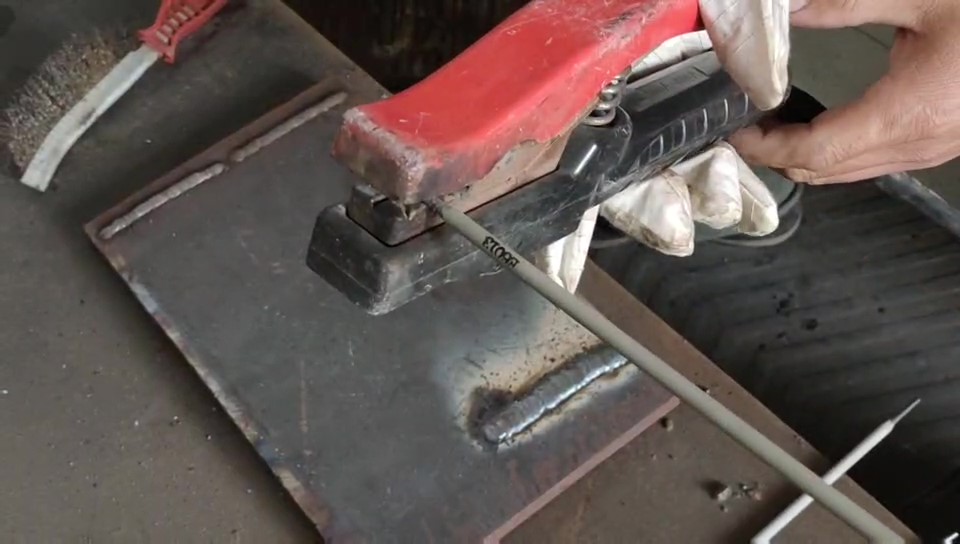

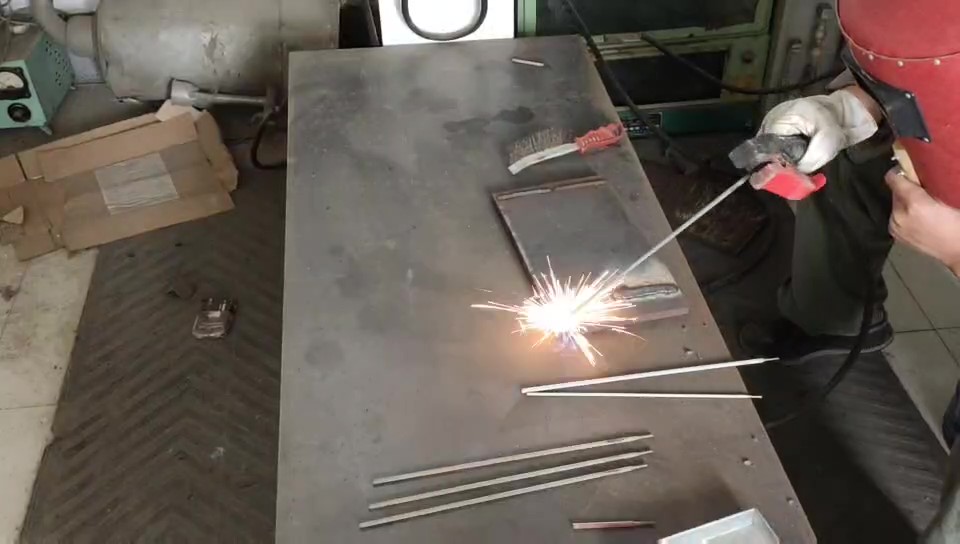

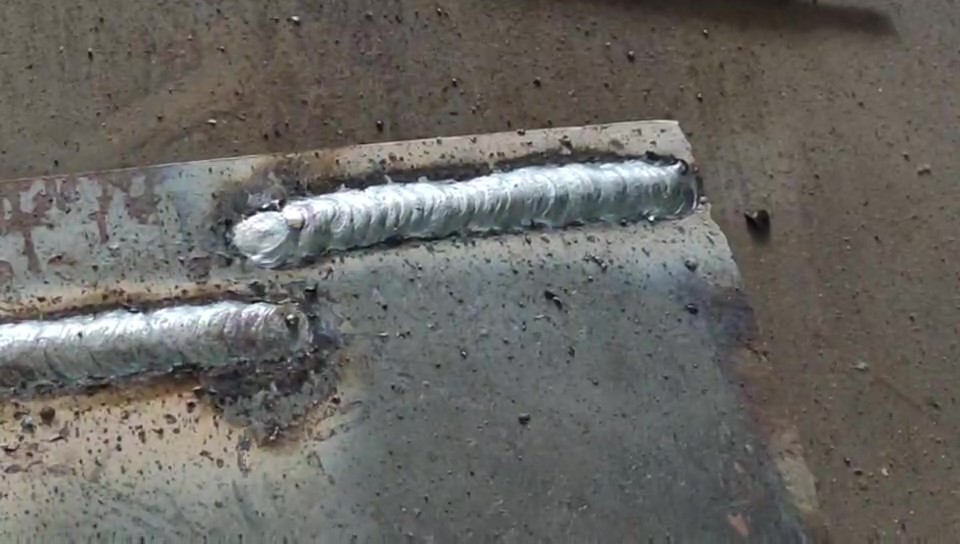

E6013 Welding Electrode Welding Test

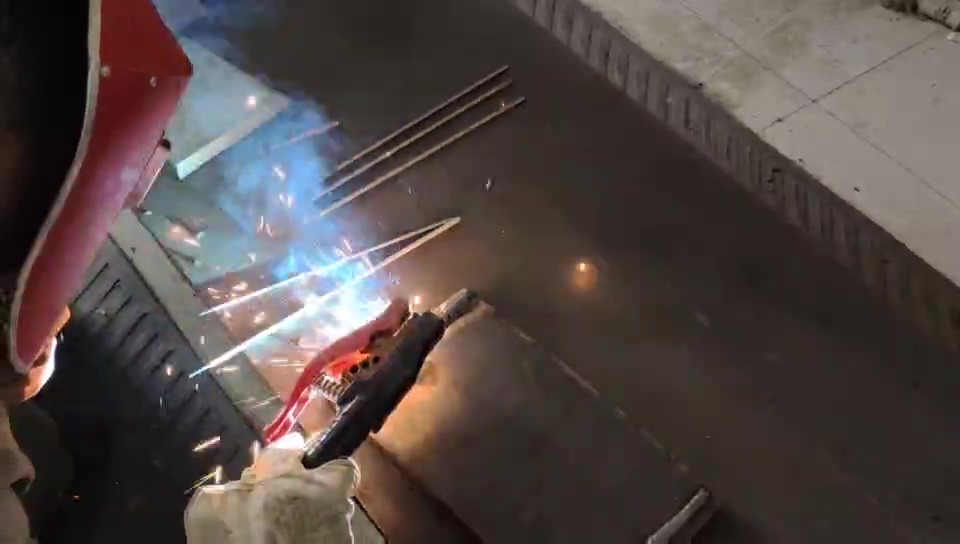

Welding Beginning

Little Smoke
Slag Seperated with Steel

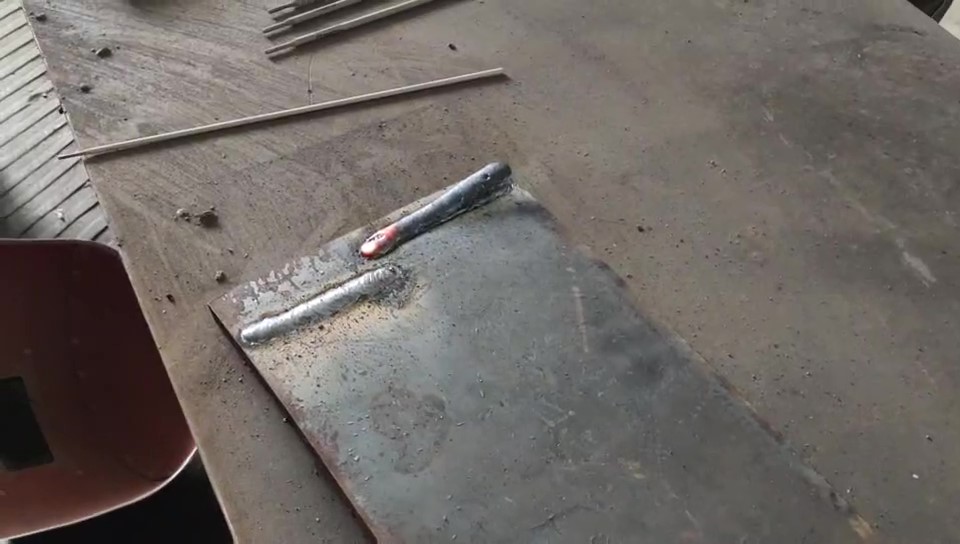

Smooth Welding Surface
Contact With Us to Buy Your Interested Welding Electrode

IF CUSTOMER HAVE MORE PACKING DETAILS, ALSO CAN BE CUSTOMIZED.

Payment and Logistic

Payment Terms and Production Time
1. Payment terms
1. FOB Terms: 30% deposit, balance before loading
2. CNF Terms: 30% deposit, balance against BL copy or balance against irrevocable LC at sight
3. CIF Terms: 30% deposit, balance against BL copy or balance against irrevocable LC at sight

2.Shipping
1. 5 tons to 25 tons 7-10 days finish the goods after getting deposit
2. 20 tons to 75 tons 10-15 days finish the goods after getting deposit
3. 75 tons to 270 tons 30 days finish the goods after getting deposit

Recommend Products


Company Profile


Exhibition


FAQ

1. ARE U MANUFACTURER?
We have more than 20 years produce experience, and now my factory is producing annealed wire, galvanized wire, nails, welding
electrode and wire meshes. Welcome to inquiry.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Galvanized Wire,Annealed Wire,Nails,Welding Electrode,Wire Meshes

4. why should you buy from us not from other suppliers?
1). High Quality Products 2). 22 Years Production Experirance 3). 8 Production Line and 60 Drawing Wire Machine 4). Short Delivery
Time 5). OEM

ANY MORE QUESTIONS ABOUT US, PLEASE CLICK HERE TO CONTACT WITH US.
