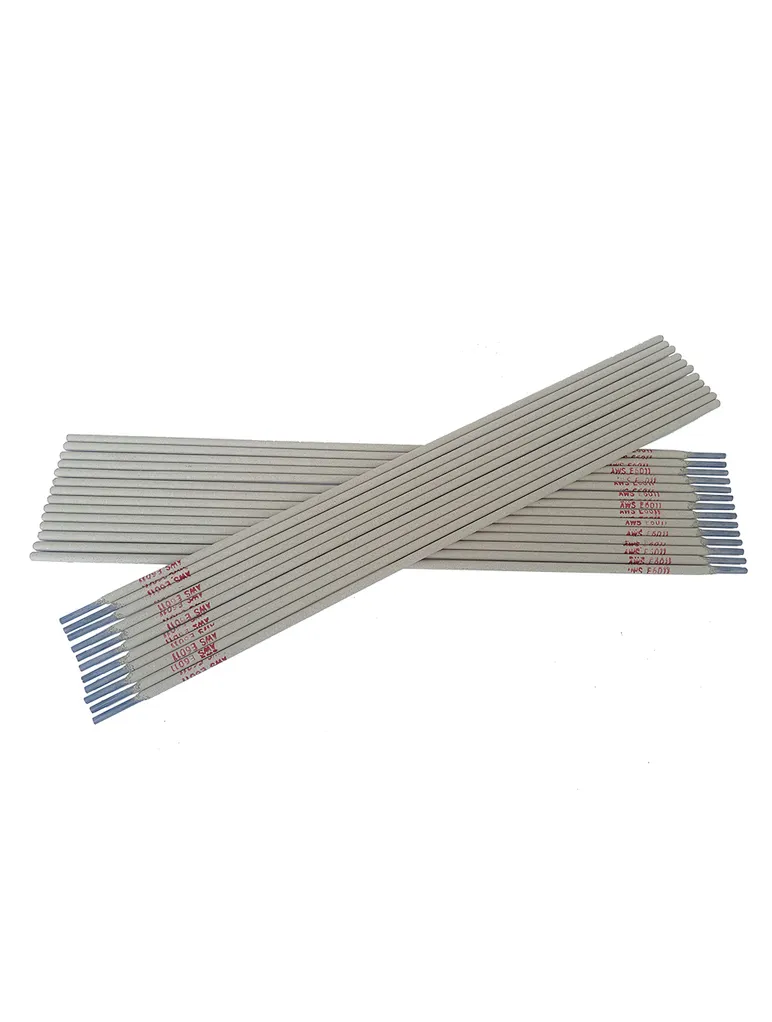

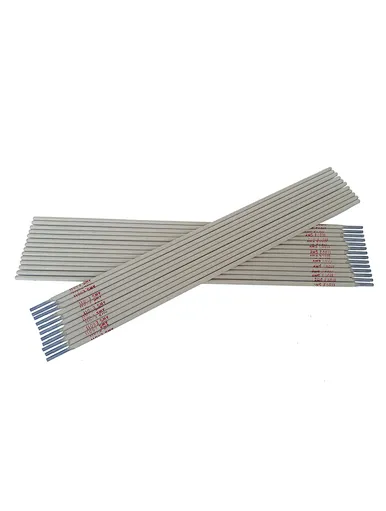

6010 rod 3/32 6011 welding electrode
price
$1.10 - $1.35 / kilogram
E6011
1 kilogram
Tianjin
Quantity
- Warranty:3 years
- Customized support:OEM, ODM, OBM
- Place of Origin:Hebei, China
- Brand Name:JINYUAN
- Model Number:E6011
- Material:STEEL ALLOY
- Operating Current:3/32 40-60A; 1/8 80-100A
- Welding Current:3/32 40-60A; 1/8 80-100A
- Operating Temperature:Normal Tempreture
- Application:pipeline, shipbuilding, bridge
- Certification:ISO9001:2015
- Currence Type:AC and DC
- Welding Position:All position, especially for vertical down
Products Description

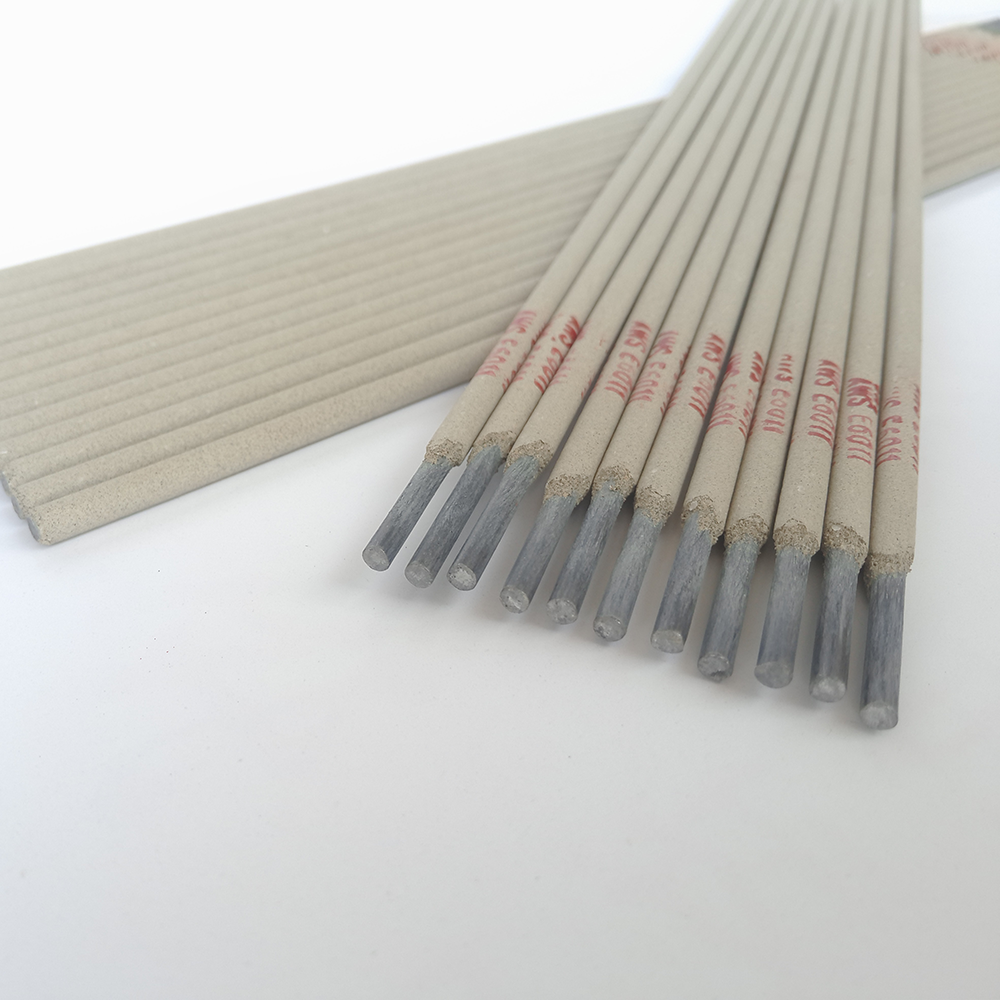

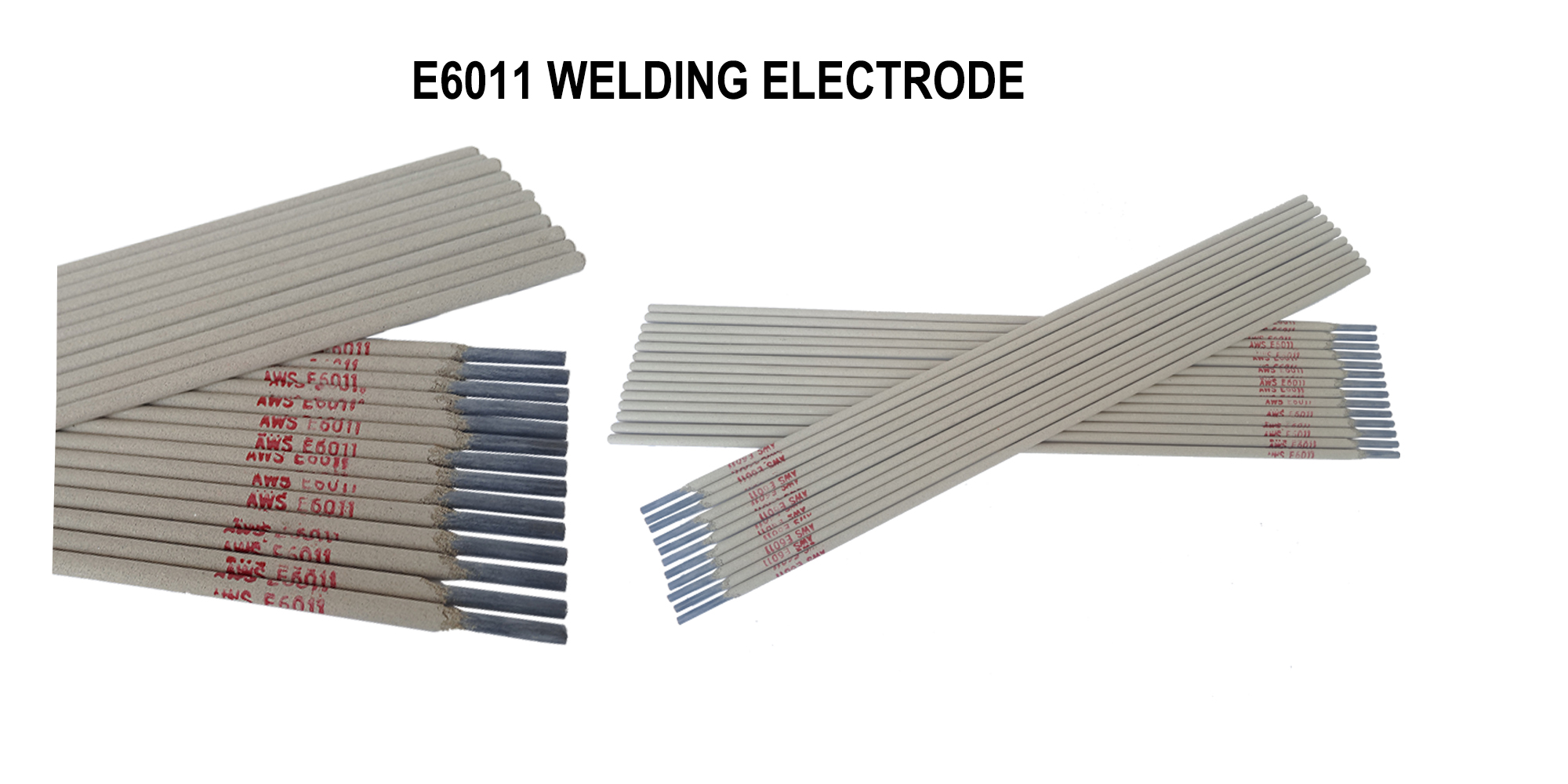

WELDING ELECTRODE DISPLAY
E6011 is a rutile-cellulosic potassium type electrode.Can be weld for all-position (especially for vertical-down position)with AC and DC". It have excellent welding performance as stable arc, little spatter,easy slag removal and reignition-ability etc. Better molten pool control, stronger arc force and deeper penetration at vertical-down position.
E6011 Welding Electrode | ||
Application: | Low carbon steel structure such as Pipeline, Shipbuilding, Bridge | |
Welding Position: | All Position. (especially for vertical-down position) PA, PB, PC, PD, PE, PF, PG | |
X-ray Inspection | Ⅱ Level | |
Color | White Yellow | |
Advantage: | 1.Stable Arc 2. Little Spatter 3. Easily Remove Slag 4.Easy Reignition 5. Little Smoke 6. Vertical-down Welding | |
Little Spatter | ||
Easy Remove Slag | ||
Please check more details below. | ||
E6011 Welding Electrode Chemical Composition of Deposited Metal (Wt.%) | ||||||||||||||||||
Items | C | Mn | Si | S | P | Ni | Cr | Mo | V | |||||||||
Requirements | ≤0.20 | ≤1.2 | ≤1.00 | ≤0.035 | ≤0.040 | ≤0.30 | ≤0.20 | ≤0.30 | ≤0.08 | |||||||||
Typical Results | 0.09 | 0.70 | 0.30 | 0.020 | 0.018 | 0.030 | 0.035 | 0.005 | 0.004 | |||||||||
E6011 Welding Electrode Mechanical Properties of All Weld Metal: | ||||||||
Item | Rm (Mpa) | Rel/Rp0.2(Mpa) | A(%) | KV2(J) | ||||
Requirements | ≥430 | ≥330 | ≥20 | ≥27（-30℃） | ||||
Typical Results | 558 | 460 | 24.5 | 45 | ||||
E6011 Welding Electrode Reference Current( AC, DC) | ||||||||
Diameter (mm) | 2.5 | 3.2 | 4.0 | 5.0 | ||||
Length(mm) | 350 | 350 | 400 | 400 | ||||
Welding Current (A) | 40-60 | 80-100 | 100-140 | 150-200 | ||||
Attention:
1.In generally, don't need to re-dry the electrode before welding. When it be affected with
damp,should be re-dry it at 70℃-90℃ for 1 hour.
2.The rust,oil,water and other impurities of the weld area must be removed before welding.
damp,should be re-dry it at 70℃-90℃ for 1 hour.
2.The rust,oil,water and other impurities of the weld area must be removed before welding.
Product Package

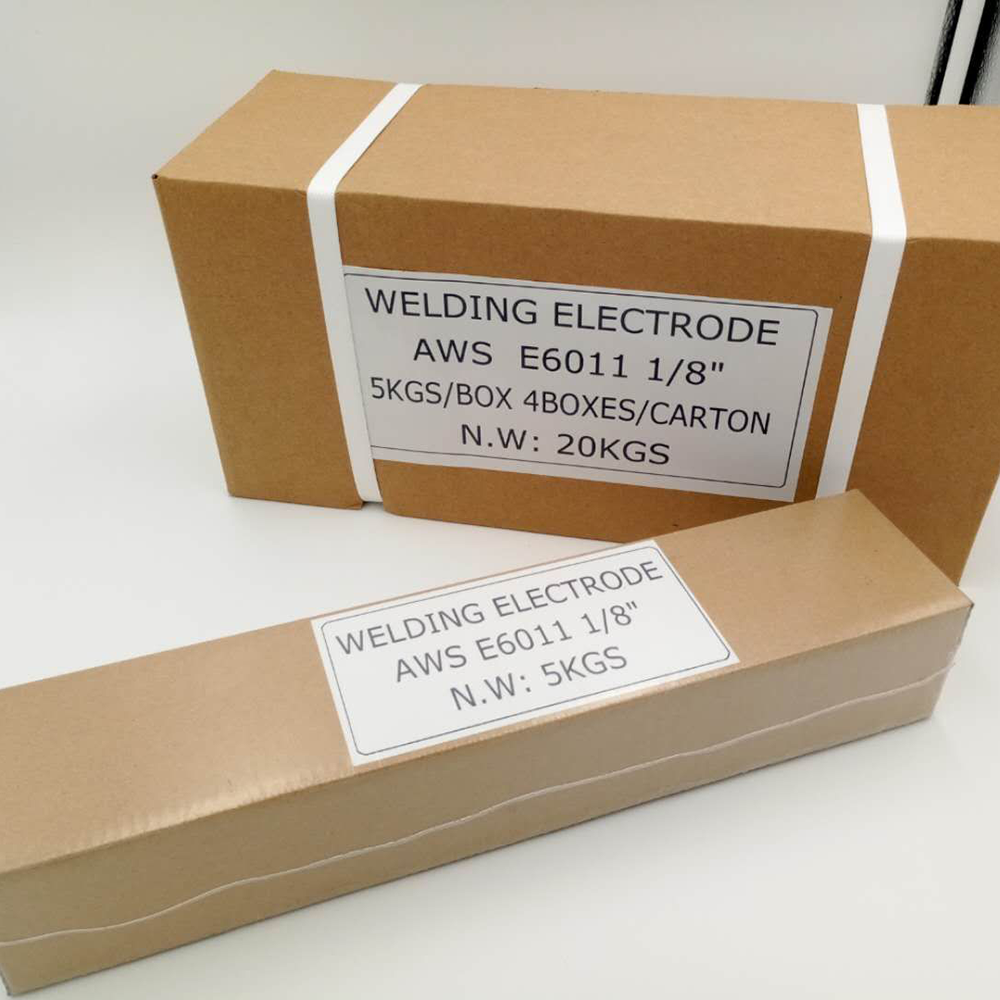

Small Box Packing, then Put into Big Carton

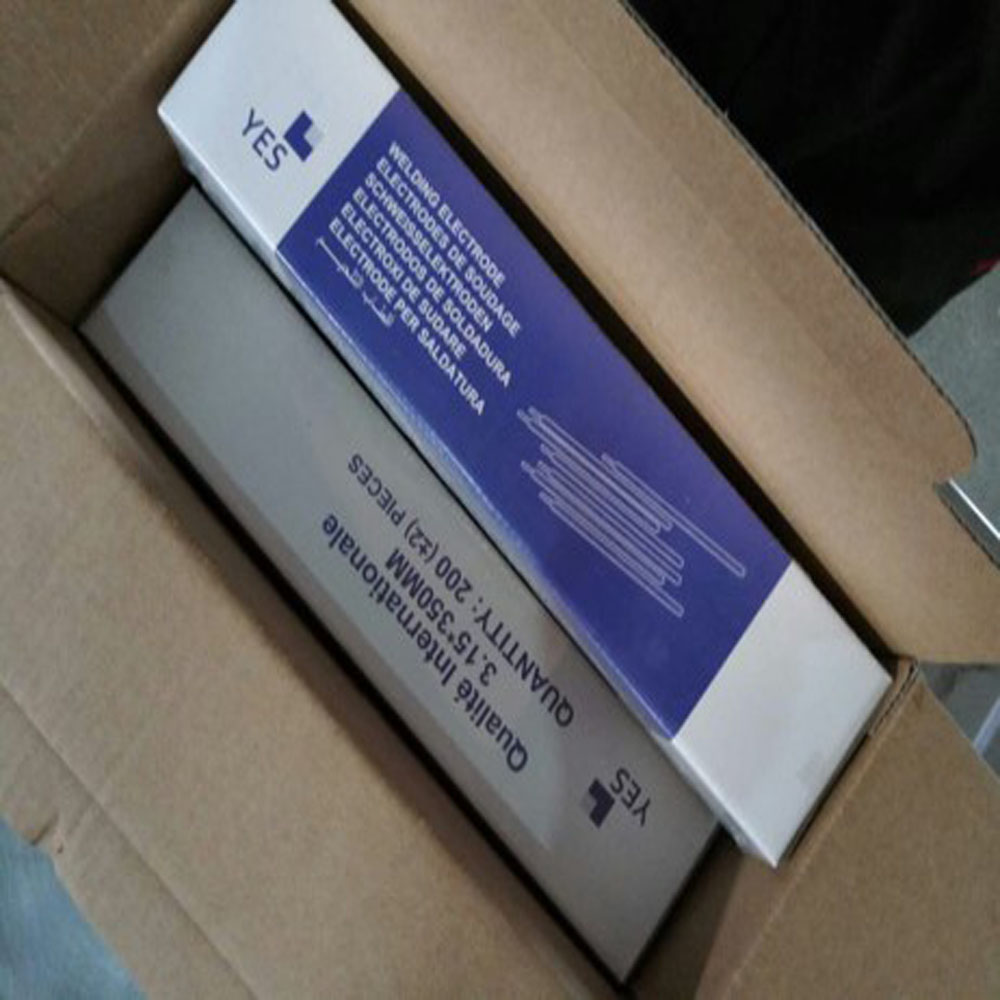

Plastic Box Packing
IF CUSTOMER HAVE MORE PACKING DETAILS, ALSO CAN BE CUSTOMIZED.
Quality Checking

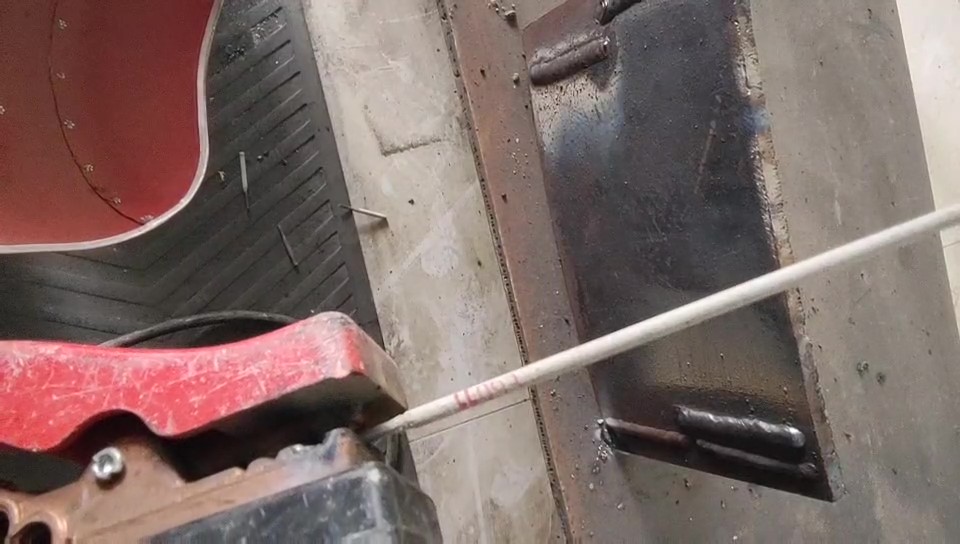

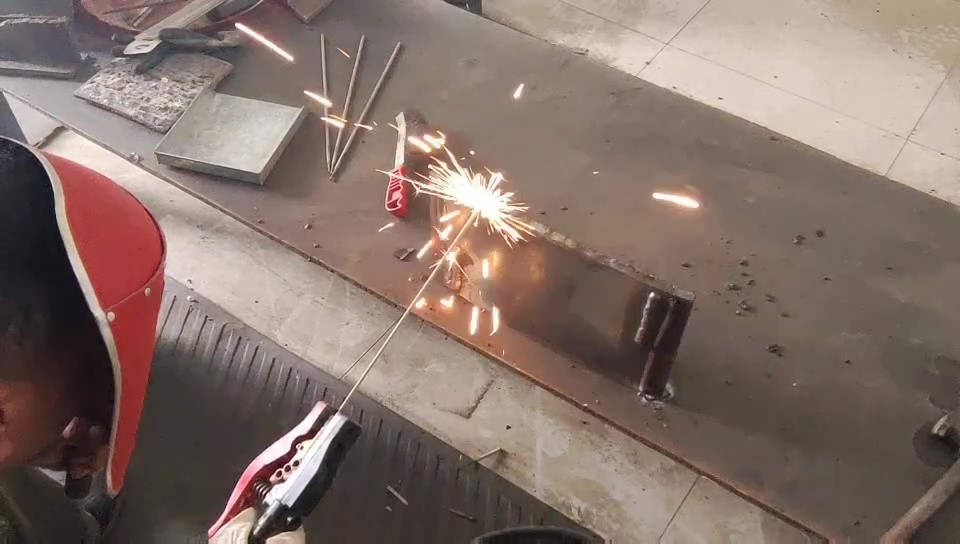

E6011 Welding Electrode Weld Test
Checking Tensile Strength and Elongation of the Wire

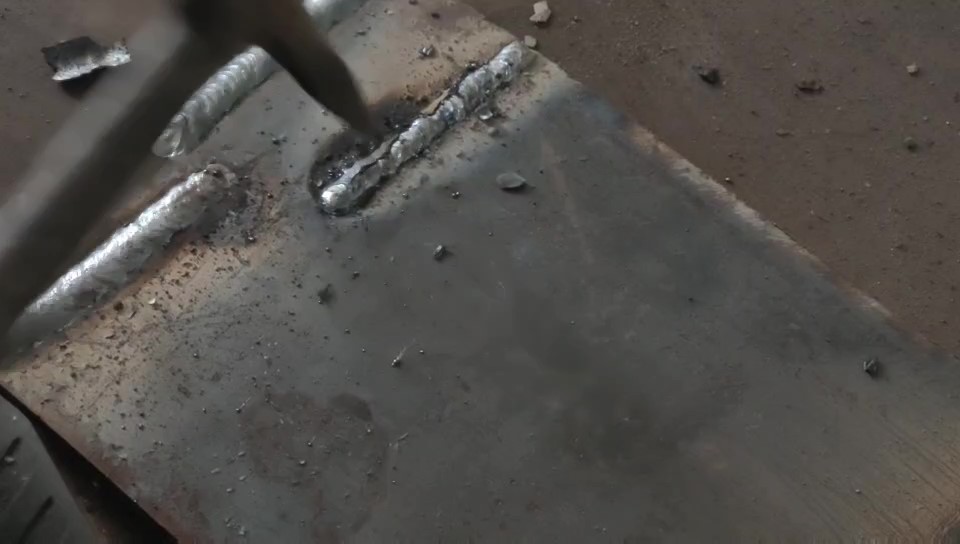

Easy Remove Slag

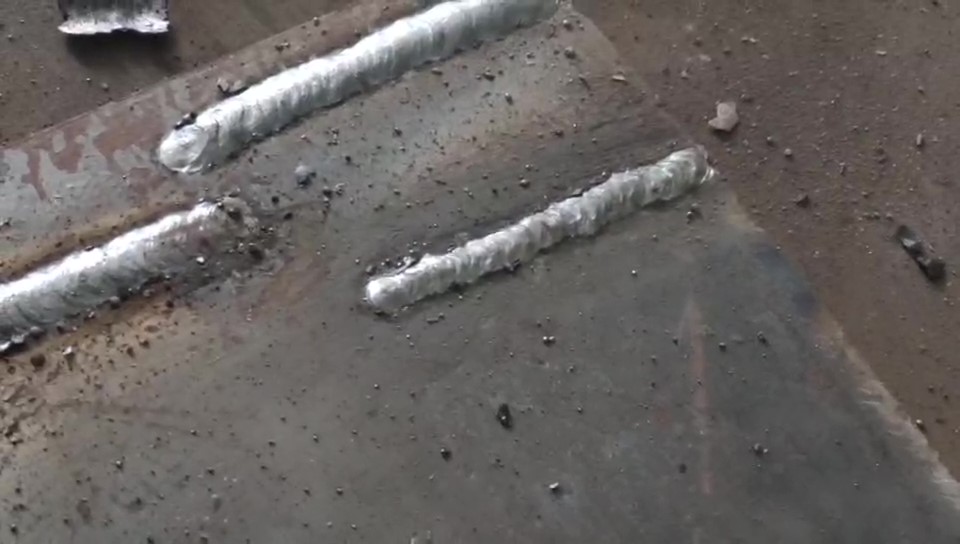

Welding Surface Show
Payment and Logistic
Payment Terms and Production Time
1. Payment terms
1. FOB Terms: 30% deposit, balance before loading
2. CNF Terms: 30% deposit, balance against BL copy or balance against irrevocable LC at sight
3. CIF Terms: 30% deposit, balance against BL copy or balance against irrevocable LC at sight
2.Shipping
1. 5 tons to 25 tons 7-10 days finish the goods after getting deposit
2. 20 tons to 75 tons 10-15 days finish the goods after getting deposit
3. 75 tons to 270 tons 30 days finish the goods after getting deposit
1. FOB Terms: 30% deposit, balance before loading
2. CNF Terms: 30% deposit, balance against BL copy or balance against irrevocable LC at sight
3. CIF Terms: 30% deposit, balance against BL copy or balance against irrevocable LC at sight
2.Shipping
1. 5 tons to 25 tons 7-10 days finish the goods after getting deposit
2. 20 tons to 75 tons 10-15 days finish the goods after getting deposit
3. 75 tons to 270 tons 30 days finish the goods after getting deposit
