BRIDGE BRAND E6013 TIANJIN BRIDGE welding electrode Welding Rods aws a5.1 e6013 J421
price
$0.83 - $1.10 / kilogram
E6013
1 kilogram
Tianjin
Quantity
- Warranty:3 years
- Customized support:OEM, ODM, OBM
- Place of Origin:Hebei, China
- Brand Name:Jinyuan
- Model Number:E6013
- Material:H08A low carbon steel
- Operating Current:40A-280A
- Welding Current:40A-280A
- Operating Temperature:Standard Temperature
- Application:low carbon steel structure
- Product Name:welding electrodes E6013
- Color:Grey.light Green. Grey White
- Model:AWS E6011 E6013 E7018
- Size:2.0mm/2.5mm/3.2mm/4.0mm/5.0mm
- Length:300mm 350mm 400mm 450mm
- Packing:20kg/carton
Products Description

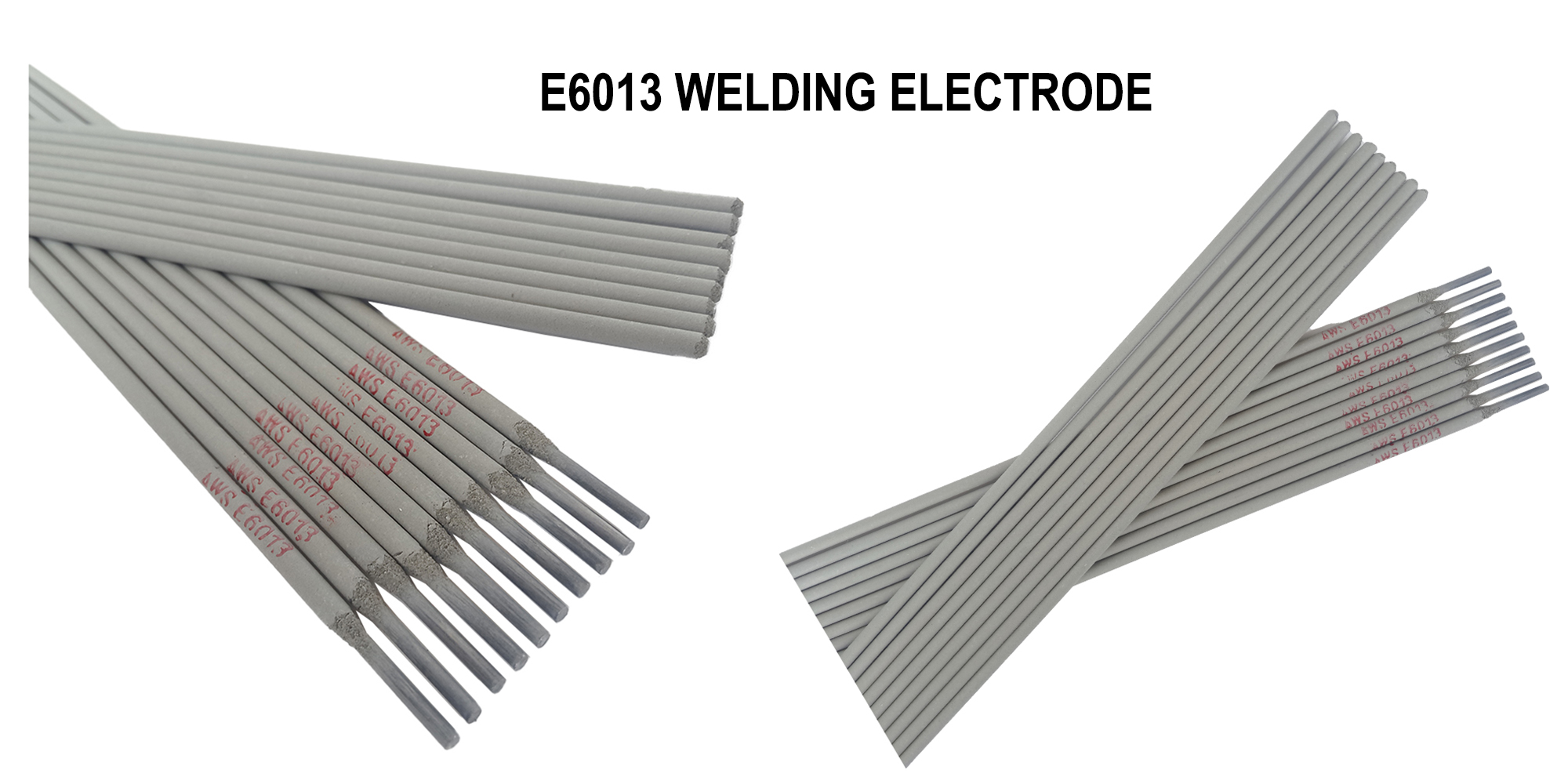

WELDING ELECTRODE DISPLAY

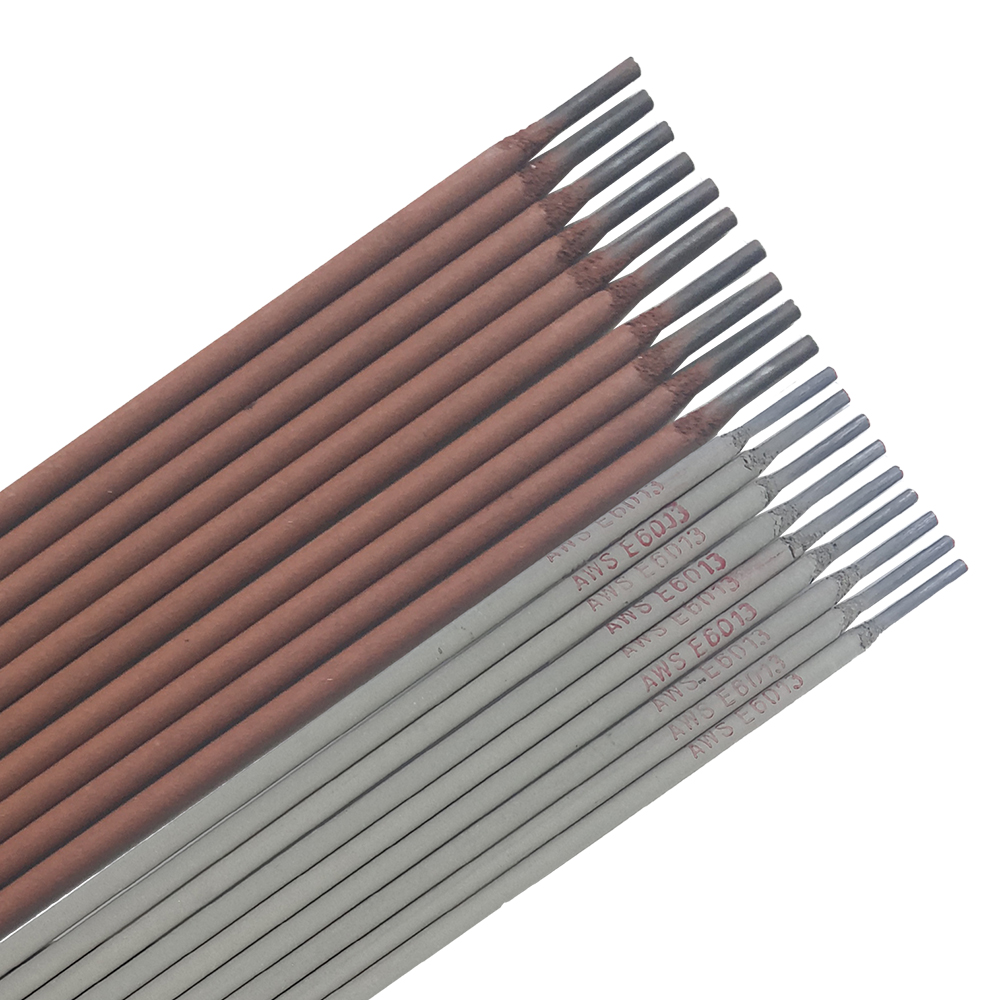

E6013 Welding Electrode | ||
Application: | Thin Plates, Smooth Surface Beads, Low Carbon Steel Structure | |
Welding Position: | All Position. PA, PB, PC， PD， PE， PF | |
X-ray Inspection | Ⅱ Level | |
Color | Grey, Blue, Red, White Yellow | |
Advantage: | 1.Stable Arc 2. Little Spatter 3. Easily Remove Slag 4.Easy Reignition 5. Little Smoke | |
Little Spatter | ||
Easy Remove Slag | ||
Please check more details below. | ||
E6013 Welding Electrode Chemical Composition of Deposited Metal (%) | ||||||||||||
Composition | C | Mn | Si | S | P | |||||||
Guarantee Value | ≤0.12 | 0.3-0.6 | ≤0.35 | ≤0.035 | ≤0.040 | |||||||
E6013 Welding Electrode Mechanical Properties of Deposited Metal | ||||||||||||
Test Item | Rm (Mpa) | ReL(Mpa) | A(%) | KV2(J) | ||||||||
Guarantee Value | ≥420 | ≥330 | ≥17 | ≥47 | ||||||||
E6013 Welding Electrode Reference Current( AC, DC) | ||||||||||||
Diameter (mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 | 5.8 | ||||||
Welding Current (A) | 40-70 | 50-90 | 90-130 | 130-210 | 180-240 | 220-280 | ||||||

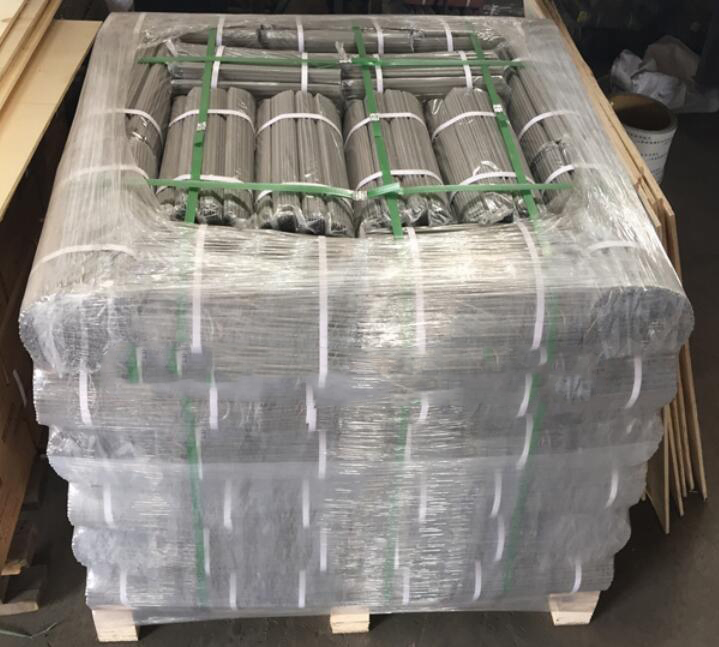

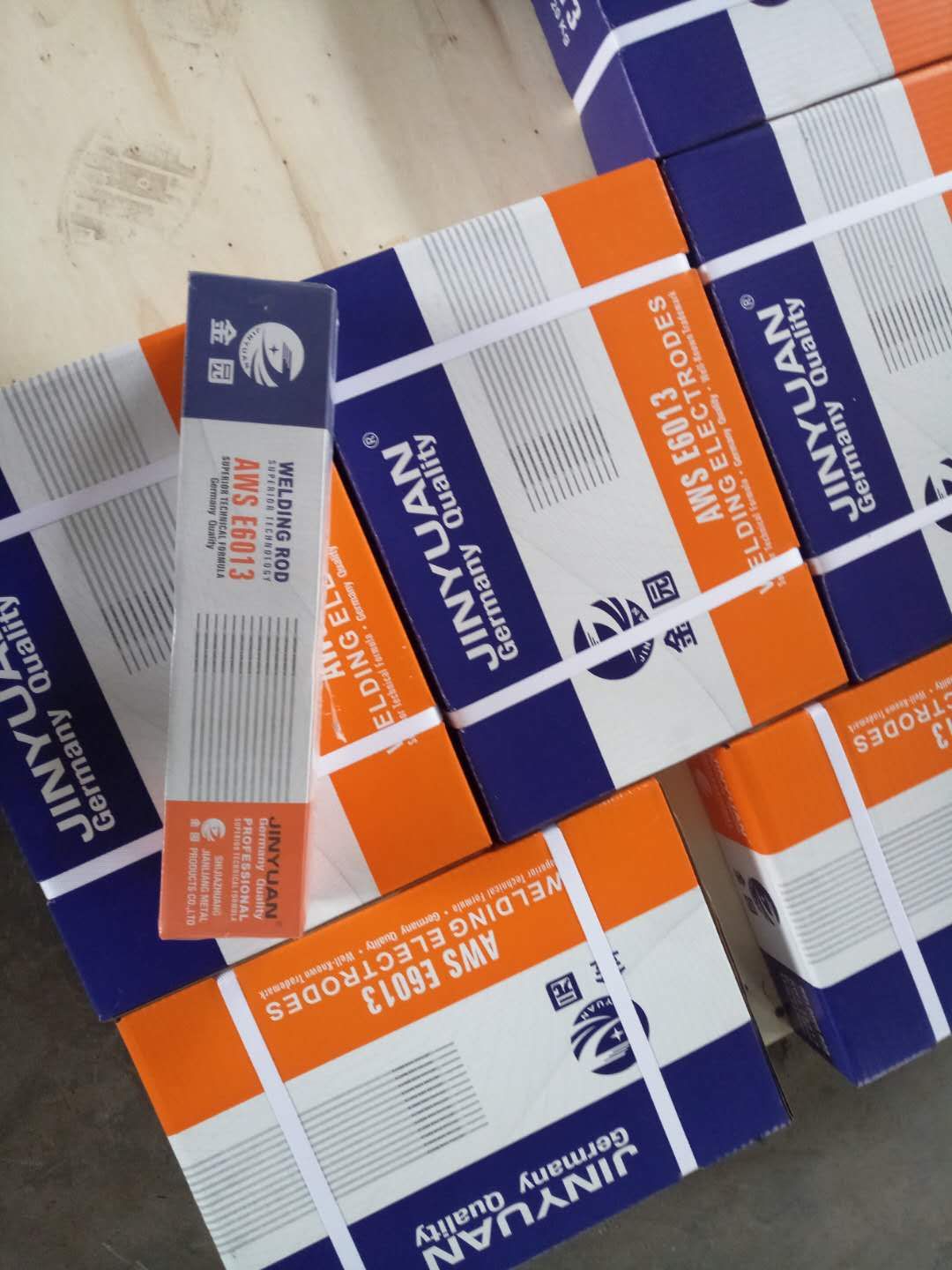

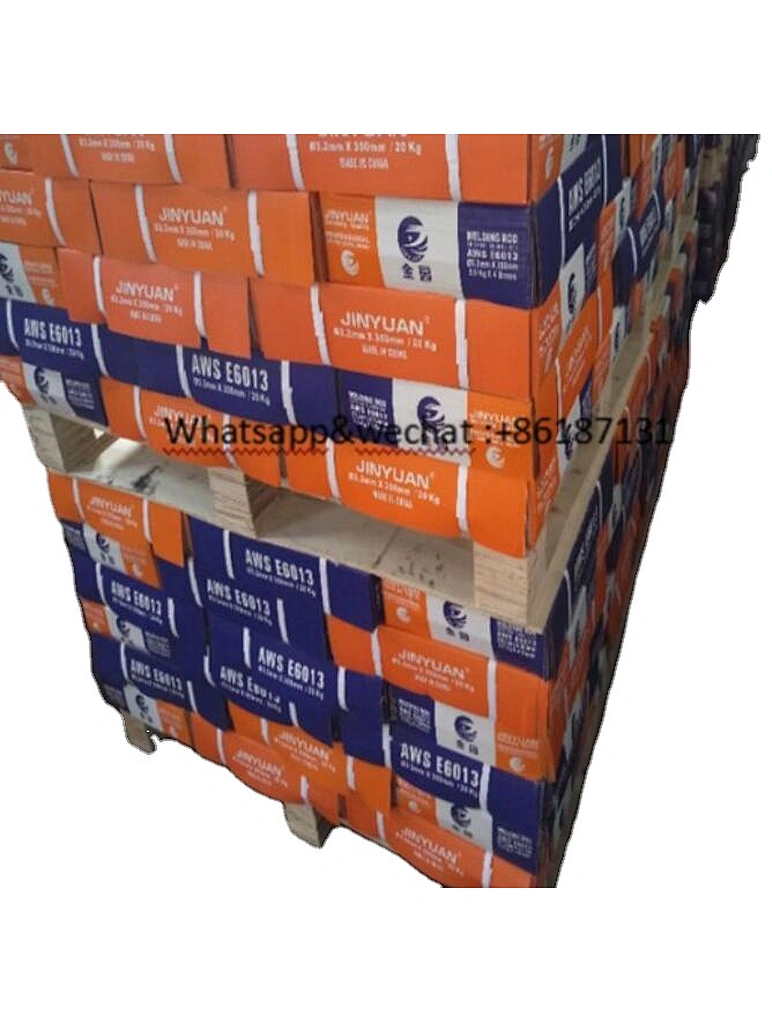

Product Package
Small Box Packing, then Put into Big Carton

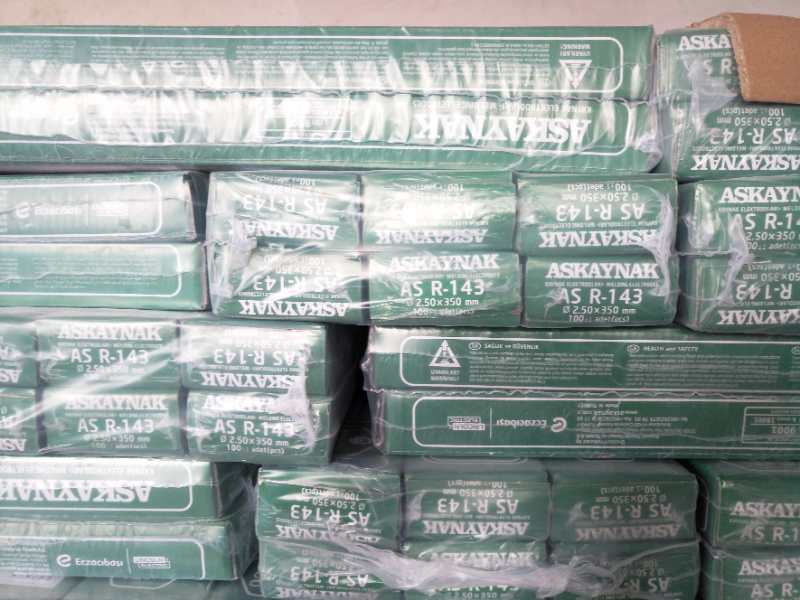

Six Small Box by Shrink Plastic Film

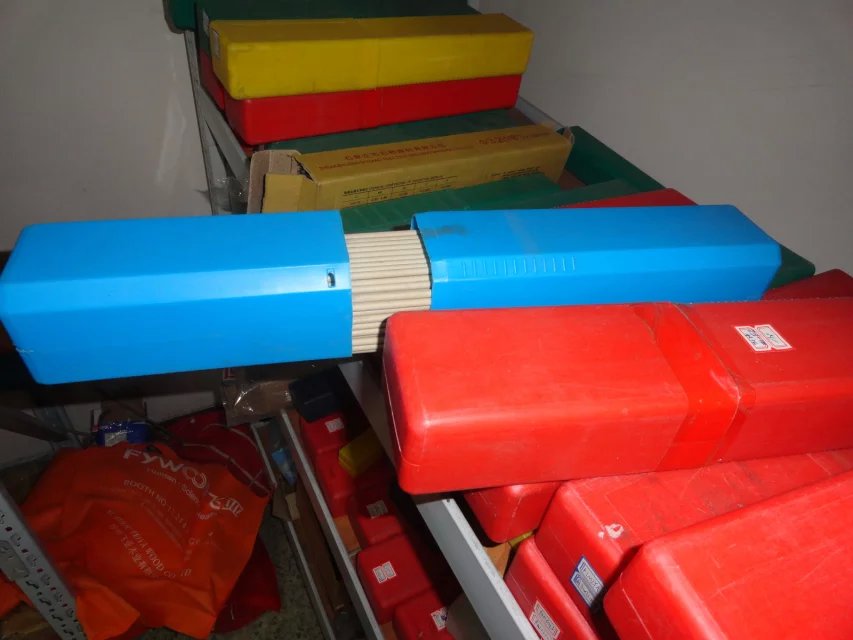

Plastic Box Packing
Checking Tensile Strength and Elongation of the Wire
Quality Checking

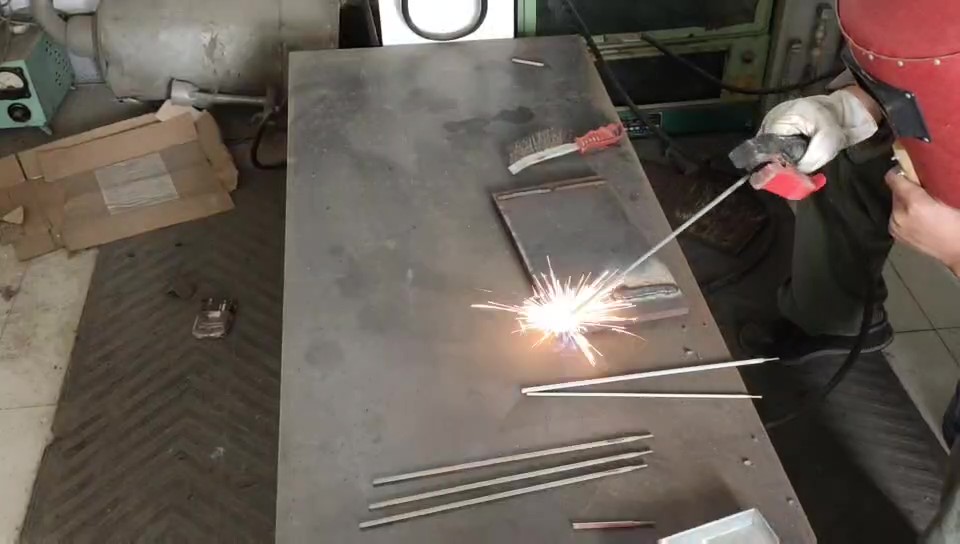

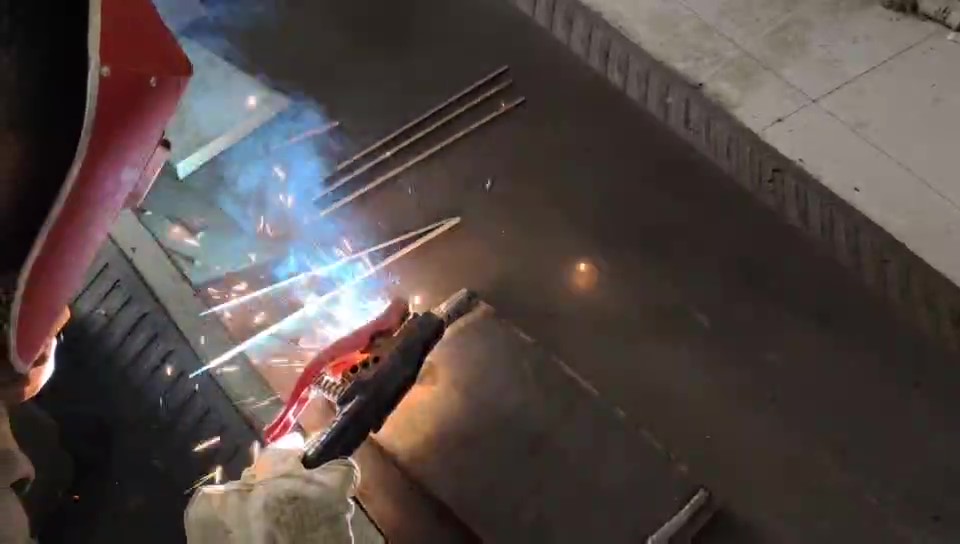

E6013 Welding Electrode Welding Test

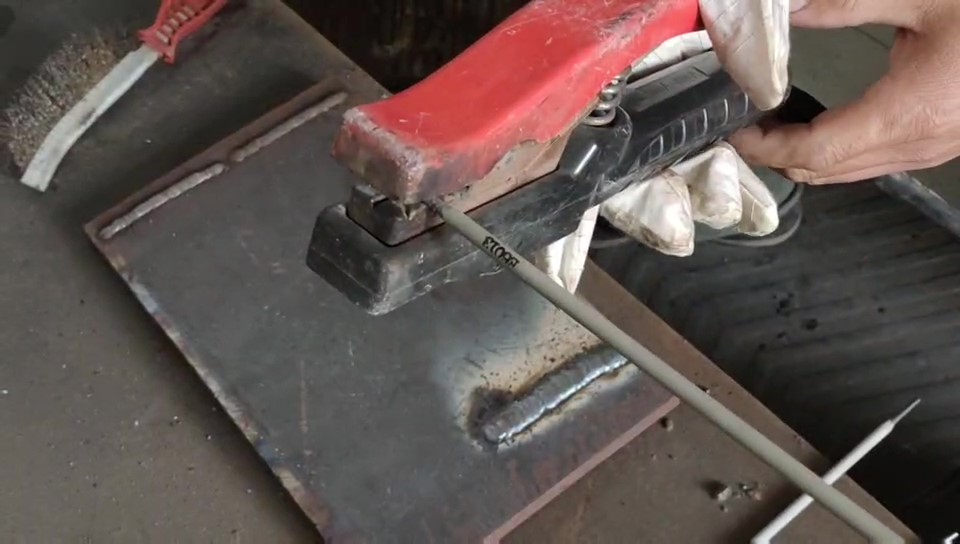

Welding Beginning
Little Smoke
Slag Seperated with Steel

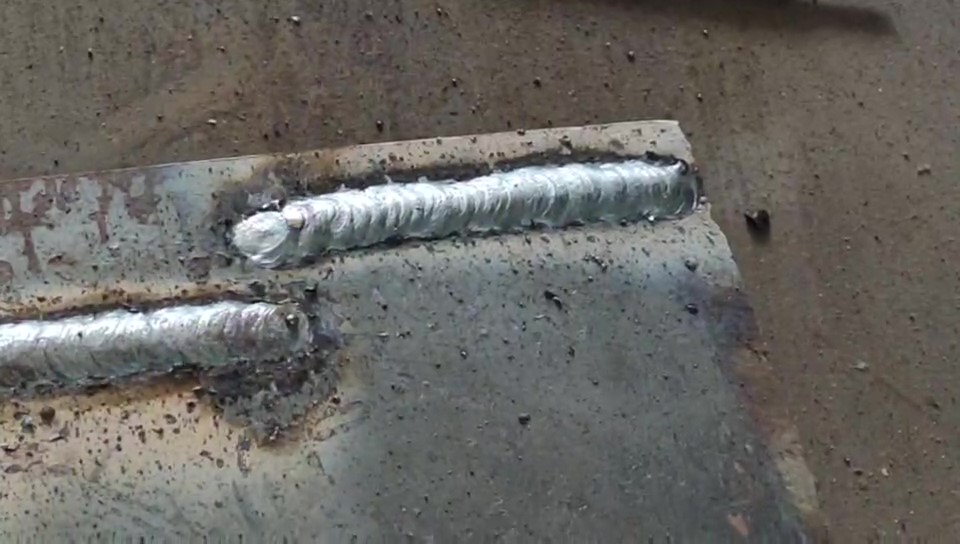

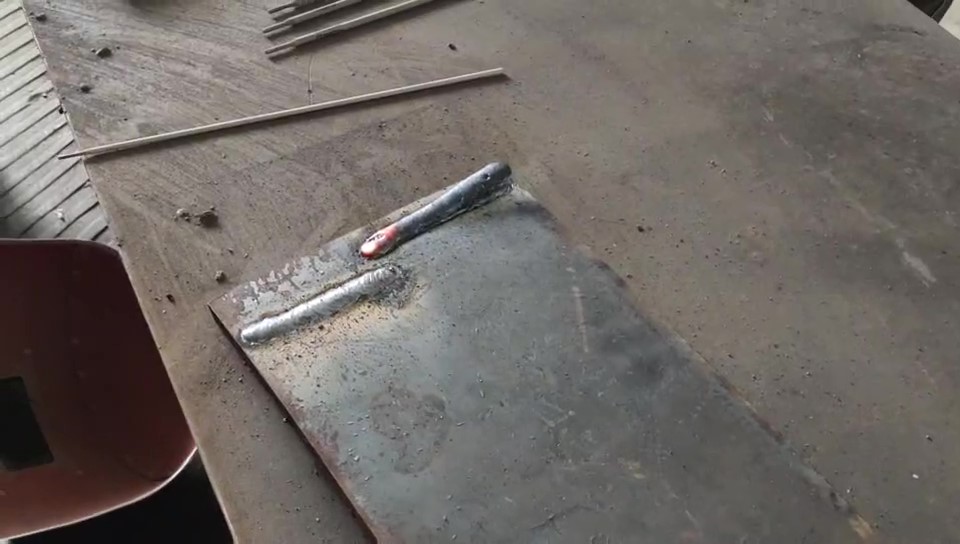

Smooth Welding Surface
Contact With Us to Buy Your Interested Welding Electrode
IF CUSTOMER HAVE MORE PACKING DETAILS, ALSO CAN BE CUSTOMIZED.
Payment and Logistic
Payment Terms and Production Time
1. Payment terms
1. FOB Terms: 30% deposit, balance before loading
2. CNF Terms: 30% deposit, balance against BL copy or balance against irrevocable LC at sight
3. CIF Terms: 30% deposit, balance against BL copy or balance against irrevocable LC at sight
2.Shipping
1. 5 tons to 25 tons 7-10 days finish the goods after getting deposit
2. 20 tons to 75 tons 10-15 days finish the goods after getting deposit
3. 75 tons to 270 tons 30 days finish the goods after getting deposit
1. FOB Terms: 30% deposit, balance before loading
2. CNF Terms: 30% deposit, balance against BL copy or balance against irrevocable LC at sight
3. CIF Terms: 30% deposit, balance against BL copy or balance against irrevocable LC at sight
2.Shipping
1. 5 tons to 25 tons 7-10 days finish the goods after getting deposit
2. 20 tons to 75 tons 10-15 days finish the goods after getting deposit
3. 75 tons to 270 tons 30 days finish the goods after getting deposit
Recommend Products
Company Profile
Exhibition
FAQ
1. ARE U MANUFACTURER?
We have more than 20 years produce experience, and now my factory is producing annealed wire, galvanized wire, nails, welding
electrode and wire meshes. Welcome to inquiry.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Galvanized Wire,Annealed Wire,Nails,Welding Electrode,Wire Meshes
4. why should you buy from us not from other suppliers?
1). High Quality Products 2). 22 Years Production Experirance 3). 8 Production Line and 60 Drawing Wire Machine 4). Short Delivery
Time 5). OEM
We have more than 20 years produce experience, and now my factory is producing annealed wire, galvanized wire, nails, welding
electrode and wire meshes. Welcome to inquiry.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Galvanized Wire,Annealed Wire,Nails,Welding Electrode,Wire Meshes
4. why should you buy from us not from other suppliers?
1). High Quality Products 2). 22 Years Production Experirance 3). 8 Production Line and 60 Drawing Wire Machine 4). Short Delivery
Time 5). OEM
ANY MORE QUESTIONS ABOUT US, PLEASE CONTACT WITH MERRY HUANG
